Wedge wire screen flat panels are widely used in industrial filtration, dewatering, screening, and solid-liquid separation applications. Manufactured by welding V-shaped profile wires to support rods, these panels provide precise slot openings, excellent mechanical strength, and superior resistance to clogging.
However, not all wedge wire screen flat panels perform the same. Factors such as slot width, wire profile, open area, material selection, flow direction, and operating conditions all influence filtration efficiency, flow capacity, and service life. Understanding these factors helps engineers and plant operators select the most suitable panel for their specific application.

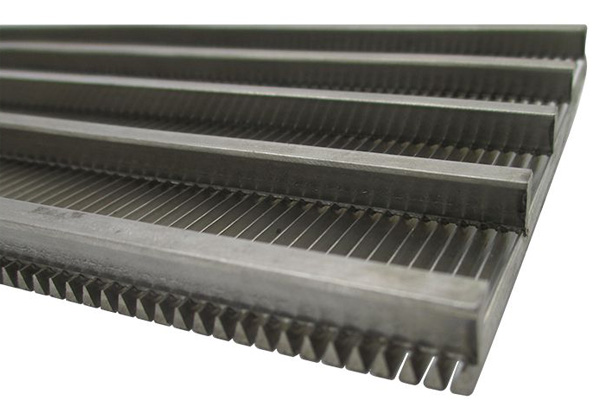

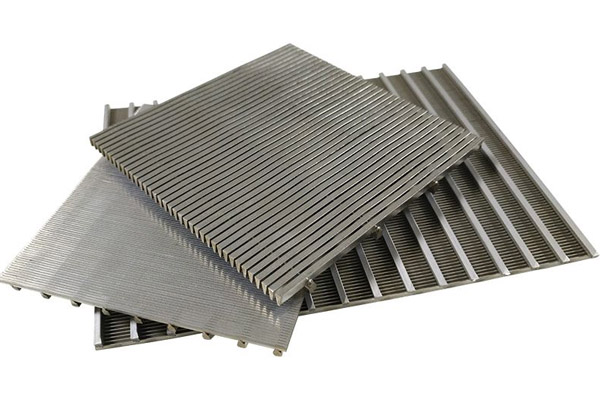

A wedge wire screen flat panel consists of parallel V-shaped wires welded to support rods, creating continuous slot openings across the screening surface.
Unlike woven mesh or perforated plates, wedge wire panels feature a slot profile that widens inward. This design minimizes particle wedging and promotes self-cleaning, making the panels ideal for applications involving wastewater, mining slurries, food processing, pulp and paper production, and water treatment systems.
The performance of a wedge wire screen flat panel directly affects system efficiency and operating costs.
A poorly selected panel can lead to:
Conversely, a properly designed panel can improve filtration efficiency, extend maintenance intervals, and increase overall system productivity.
Slot width is one of the most important design parameters.
Smaller slot openings provide finer particle retention and higher filtration accuracy but typically reduce flow capacity. Larger openings allow higher throughput but may permit smaller particles to pass through.
Because wedge wire panels are manufactured with highly consistent slot openings, they offer predictable separation performance and minimize screen blinding.
Different wire profiles are designed for specific operating conditions.
Flat Top Profiles are commonly used for general filtration and dewatering applications.
V-Shaped Profiles create a self-cleaning effect because the slot widens beneath the surface opening, reducing the likelihood of particle blockage.
Square and Riffle Profiles are often selected for abrasive materials or applications requiring enhanced grip and gravity separation.
Choosing the correct profile can significantly improve screening efficiency and service life.
Open area refers to the percentage of the screen surface available for flow.
Compared with perforated plates and woven mesh, wedge wire screen flat panels generally provide a larger active filtration area.
Benefits of higher open area include:
Maintaining an optimal balance between open area and structural strength is essential for long-term performance.
Material selection should be based on operating conditions, chemical exposure, and temperature requirements.
Common materials include:
| Material | Typical Application |
|---|---|
| SS304 | General water filtration |
| SS316L | Corrosive water and wastewater |
| Monel | Marine environments |
| Hastelloy | Strong acids and chemicals |
| Titanium | High-temperature and highly corrosive systems |
For most industrial filtration applications, 316L stainless steel offers an excellent combination of corrosion resistance, strength, and durability.
Flow direction affects how particles interact with the screen surface.
In many filtration systems, Outside-to-Inside (FOTI) flow is preferred because particles are retained on the surface and can be easily removed through scraping, brushing, or flushing.
Proper flow orientation helps reduce fouling and maintain consistent filtration performance.
Operating conditions play a significant role in long-term screen performance.
Excessive differential pressure can lead to:
Regular cleaning and maintenance help prevent solids accumulation and maintain optimal operating efficiency.
One of the greatest advantages of wedge wire screen flat panels is their high open area.
Consider two panels operating under identical conditions:
The panel with higher open area can often achieve significantly greater flow capacity while maintaining a lower pressure drop. In many applications, this translates into higher production rates and reduced pumping costs.
For facilities processing large fluid volumes, open area is often one of the most important performance indicators.
Pressure drop is a key measurement used to evaluate screen performance.
When solids accumulate on the screening surface, resistance to flow increases, resulting in higher differential pressure.
Common effects of excessive pressure drop include:
Many industrial systems aim to maintain a clean-screen pressure drop below 0.1 bar and schedule maintenance when differential pressure approaches 0.3–0.5 bar.
| Feature | Wedge Wire Panel | Perforated Plate |
| Open Area | High | Medium |
| Filtration Accuracy | High | Moderate |
| Anti-Clogging Performance | Excellent | Moderate |
| Pressure Drop | Lower | Higher |
| Service Life | Longer | Shorter |
Because of these advantages, wedge wire panels are often selected for demanding filtration and dewatering applications.
When selecting a wedge wire screen flat panel, consider the following:
✓ Particle size and retention requirements
✓ Required flow capacity
✓ Operating pressure and temperature
✓ Chemical compatibility
✓ Abrasion resistance requirements
✓ Cleaning and maintenance methods
✓ Desired service life
Matching these factors to the application helps maximize performance while minimizing operating costs.
The ideal slot size depends on the particle size being retained and the desired filtration efficiency. Common slot openings range from 0.10 mm to 3.00 mm.
The V-shaped wire profile creates an inwardly widening slot that prevents particles from becoming trapped inside the screen.
Higher open area generally increases flow capacity, reduces pressure drop, and improves overall process efficiency.
316L stainless steel is suitable for most corrosive applications, while Hastelloy, Monel, or Titanium may be required for more aggressive conditions.
The performance of a wedge wire screen flat panel depends on a combination of design, material, and operating factors. Slot width, wire profile, open area, material selection, flow direction, and maintenance practices all contribute to filtration efficiency and service life.
By carefully evaluating these factors during the selection process, operators can improve throughput, reduce maintenance requirements, and achieve more reliable performance in industrial filtration and dewatering systems.
