In chemical and pharmaceutical manufacturing, filtration is not merely a product quality requirement—it is a critical process control function. Contaminants, undissolved particles, catalyst residues, microorganisms, and corrosion by-products can significantly affect product purity, equipment reliability, and regulatory compliance.

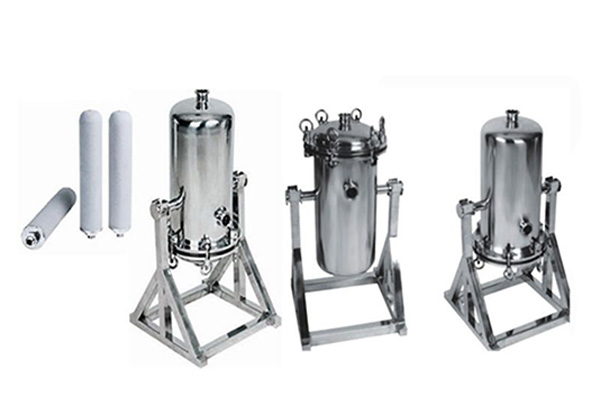

Cartridge filter housings are widely used throughout these industries because they provide high filtration efficiency, excellent chemical compatibility, and the ability to accommodate a broad range of filter media. However, the performance of a cartridge filter housing depends on more than the filter cartridge itself. Housing design, flow distribution, pressure drop characteristics, material selection, and maintenance strategies all influence overall filtration effectiveness.
Understanding these performance factors helps engineers optimize process reliability while meeting increasingly stringent quality standards.
Unlike many general industrial filtration systems, chemical and pharmaceutical operations often require:
Consistent product purity
Precise particle removal
Sterile processing conditions
Low extractables and leachables
Regulatory compliance
Minimal product loss
Cartridge filter housings provide a closed filtration environment that protects sensitive products from external contamination while enabling precise filtration down to sub-micron levels.
Typical applications include:
API production
Solvent filtration
Chemical intermediates
Water for Injection (WFI)
Purified water systems
Fermentation processes
Final product polishing
Catalyst recovery
Filtration efficiency is the primary performance indicator in pharmaceutical and chemical applications.
Modern cartridge filters typically operate within the following ranges:
| Filtration Grade | Typical Application |
|---|---|
| 50–100 μm | Pre-filtration |
| 10–25 μm | Process protection |
| 1–5 μm | Fine filtration |
| 0.2–0.45 μm | Sterile filtration |
In pharmaceutical manufacturing, 0.22-micron membrane cartridges are commonly used for sterilizing filtration because they can effectively remove bacteria while maintaining product integrity.
The housing must ensure proper cartridge sealing to prevent fluid bypass, which would compromise filtration performance regardless of cartridge quality.
One often-overlooked factor is internal flow distribution.
Poor flow distribution can result in:
Uneven cartridge loading
Premature cartridge blockage
Reduced filtration efficiency
Increased operating costs
High-performance housings incorporate engineered inlet and outlet designs that distribute flow evenly across all cartridges.
In multi-cartridge systems, balanced flow can significantly extend cartridge service life and reduce differential pressure growth.
Pressure drop directly affects filtration efficiency and operating costs.
Several factors influence pressure loss:
Cartridge micron rating
Fluid viscosity
Flow rate
Contaminant concentration
Cartridge surface area
A clean pharmaceutical-grade cartridge filter may initially operate at less than 0.1 bar differential pressure.
As contaminants accumulate, pressure gradually rises.
Most facilities establish cartridge replacement limits between 1.0 and 2.5 bar differential pressure depending on process requirements.
Excessive pressure drop may cause:
Reduced production throughput
Increased pump energy consumption
Product quality variation
Premature cartridge replacement
Monitoring differential pressure remains one of the most effective predictive maintenance strategies.
Material compatibility is particularly important in aggressive chemical environments.
Suitable for:
General water filtration
Mild chemical processes
Utility systems
Widely used in pharmaceutical production because of:
Superior corrosion resistance
Excellent cleanability
Compliance with sanitary requirements
Often se lected for:
Chloride-rich environments
High-pressure applications
Corrosive chemical streams
In pharmaceutical facilities, electropolished 316L housings are frequently specified to minimize surface roughness and reduce microbial attachment.
Filtration systems used in pharmaceutical production must meet strict hygienic standards.
Important design features include:
Minimizes contamination risks by eliminating areas where microorganisms may accumulate.
Common connection options include:
Tri-Clamp fittings
Hygienic flanges
Orbital-welded connections
Modern pharmaceutical housings are often designed for:
Clean-in-Place (CIP)
Steam-in-Place (SIP)
These systems allow effective cleaning and sterilization without equipment disassembly.
SIP temperatures may reach 121–135°C, requiring robust housing construction and high-quality sealing materials.

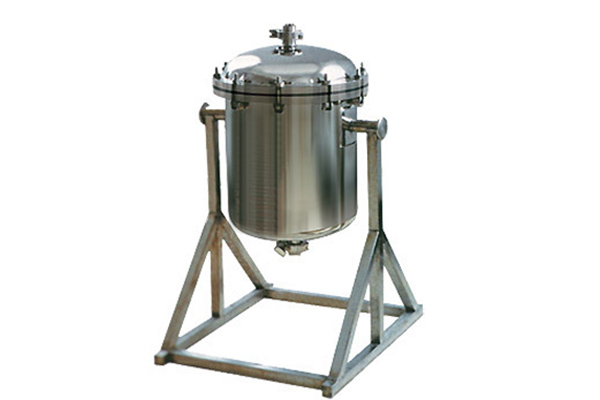

For high-volume production facilities, multi-cartridge housings offer significant performance benefits.
Advantages include:
Increased filtration area
Lower face velocity
Reduced pressure drop
Longer cartridge life
Improved flow stability
For example:
A 30-cartridge housing can provide more than 20 m² of effective filtration area, enabling flow rates exceeding 100 m³/h depending on cartridge configuration and fluid properties.
The lower velocity across each cartridge reduces fouling rates and improves filtration economics.
Several operational issues can negatively impact system efficiency.
Selecting an excessively fine filter may create unnecessary pressure loss and increase operating costs.
Poor housing design can overload certain cartridges while underutilizing others.
Aggressive solvents and corrosive chemicals may damage housing materials or sealing components.
Failure to monitor pressure differential often results in:
Reduced throughput
Product contamination risks
Increased downtime
Preventive maintenance programs help maintain stable filtration performance.
To maximize cartridge filter housing performance in chemical and pharmaceutical applications:
Select housing materials based on chemical compatibility
Use sanitary designs where required
Monitor differential pressure continuously
Optimize cartridge micron ratings
Ensure proper flow distribution
Implement CIP/SIP procedures
Verify cartridge sealing integrity
Conduct routine validation and inspection
These practices improve process consistency while reducing lifecycle costs.
316L offers superior corrosion resistance, excellent cleanability, low surface roughness, and compatibility with sanitary processing requirements.
Most systems replace cartridges when differential pressure reaches approximately 1–2.5 bar, depending on the process and filter type.
Yes. Many pharmaceutical-grade housings are designed for Steam-in-Place (SIP) sterilization at temperatures up to 121–135°C.
By increasing filtration area, multi-cartridge systems reduce face velocity, lower pressure drop, and extend cartridge service life.
Cartridge filter housing performance in chemical and pharmaceutical processing depends on a combination of filtration efficiency, flow distribution, pressure management, material compatibility, and hygienic design. While filter cartridges perform the actual particle removal, housing design determines how effectively those cartridges operate.
A properly engineered cartridge filter housing not only protects product quality and process equipment but also helps manufacturers achieve regulatory compliance, reduce operating costs, and maintain consistent production performance. As quality standards continue to rise across the chemical and pharmaceutical industries, optimizing cartridge filter housing performance becomes increasingly important for long-term operational success.
